Battery comprehensive performance tester

Battery comprehensive performance tester

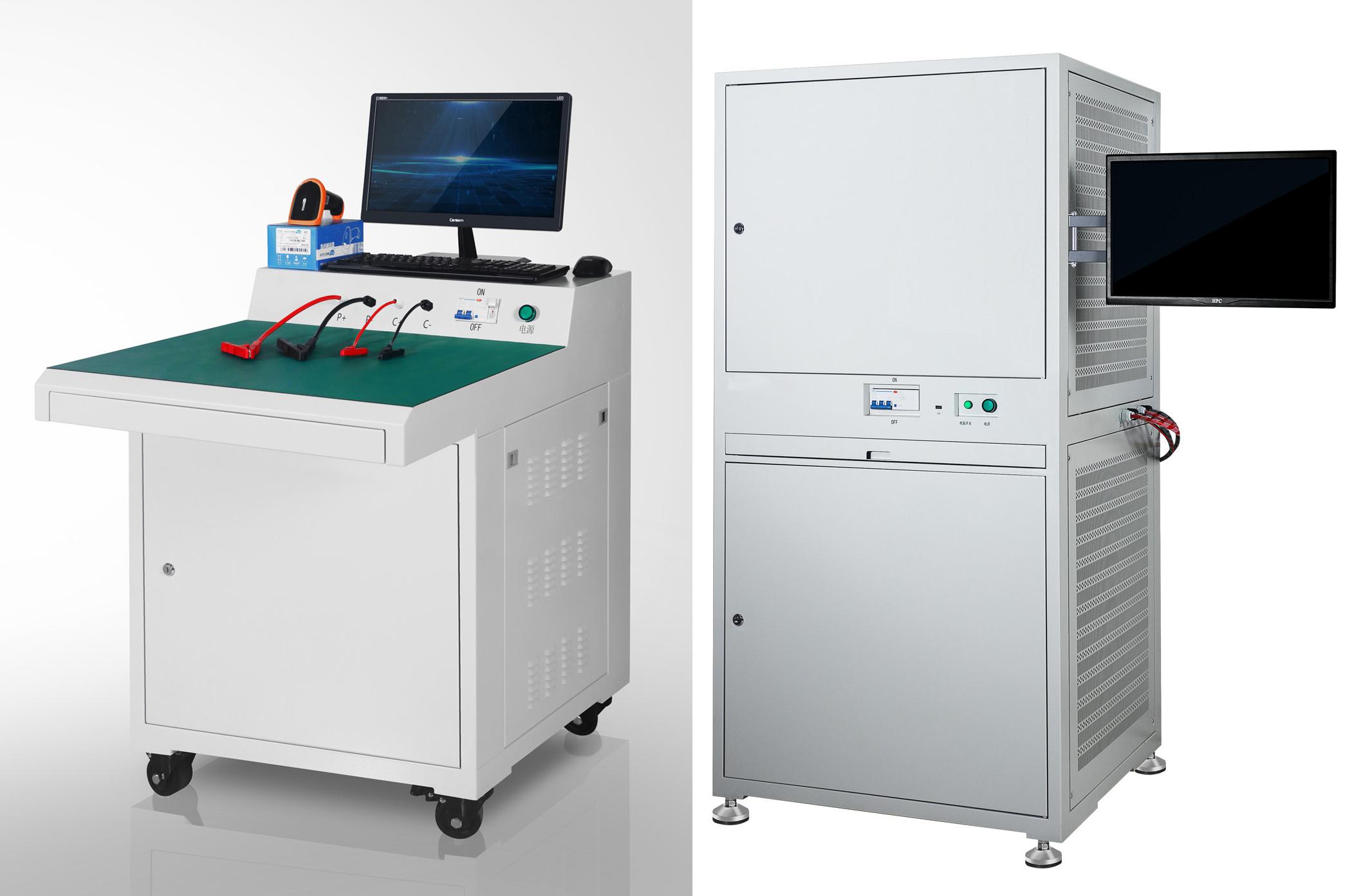

Battery comprehensive performance tester is an instrument used to test battery performance, which can test multiple key indicators of the battery

Functional features:

Various test functions: Generally, it can test battery voltage, load voltage, internal resistance, short-circuit protection time, short-circuit protection recovery function, over-discharge current, charge and discharge function, code reading, resistance identification, capacity test, etc. It can comprehensively evaluate the performance of the battery and provide detailed data support for the research and development, production, quality inspection and other links of the battery.

Fast test speed: During the fast test, a battery can be tested in as fast as 0.5 seconds, which can meet the efficiency requirements of large-scale battery production and testing.

High test accuracy: The full numerical value of the test results is accurately displayed, and the various parameters of the battery can be accurately measured, and the slight changes in battery performance can also be accurately detected.

Convenient operation: The instrument interface is displayed in full Chinese menu style, and the digital keyboard is directly operated digitally, which is simple and fast. In addition, the upper and lower limits of each test function parameter can be directly entered into the digital setting. If it is not within the set range, the instrument displays the true value but the color is deepened, and the buzzer alarm is sounded at the same time.

Application fields:

Electric vehicle field: With the popularity of electric vehicles, the quality and performance requirements of electric vehicle batteries are getting higher and higher. The battery comprehensive performance tester can test and evaluate the charging and discharging performance of electric vehicle batteries, judge the capacity and cycle life of the battery, screen and classify electric vehicle batteries, and improve the service life and safety of electric vehicle batteries.

UAV field: The flight time and stability of drones are closely related to the performance of batteries. The tester can test the discharge performance and capacity of drone batteries, evaluate the service life and performance of batteries, so as to screen and optimize drone batteries and improve the flight time and flight stability of drones.

Technical indicators:

Voltage measurement range: Different testers have different voltage measurement ranges, generally in the range of 0-10V or higher, and the minimum resolution can reach 1mV (0.001V).

Internal resistance measurement range: usually 0-999mΩ or greater, with a minimum resolution of 1mΩ, which can accurately measure the internal resistance of the battery.

Over-discharge current measurement range: generally within 0-20A or other specific larger current range, with a minimum resolution of 10mA, which can test the maximum current value allowed for discharge of the battery.
