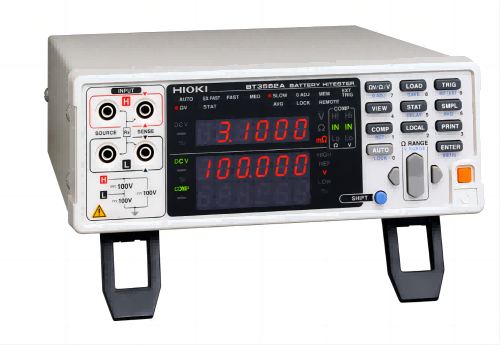

BT3562A Tester

Overview

As a high precision, wide range resistance tester, equipped with high peform-ance micro processor, the device can test internal resistance and open circuitvoltage at high speed, whether it's for large-scale & low impedance lithiumbattery cells, or the battery packs applied in high voltage scenes. lt's praisedfor its high resolution, good reliability, rapid cycle time and compact size,moreover, the rich interface implement and robust expandability make itthe perfect solution for labrotary and automatic assembly line.

• Measurement range: Internal resistance 3mΩ - 3kΩ, voltage 6V - 100V.
• Measurement accuracy: Internal resistance ±0.5% ±10 dgt (for 3mΩ), ±0.5% ±5 dgt (for above 30mΩ range); voltage ±0.01% ±3 dgt.
• Measurement frequency: 1kHz ±0.2Hz.
• Measurement method: AC 4-terminal method.
• Interfaces: LAN, RS-232C, EXT I/O, analog output.
• Power supply: AC 100V - AC 240V, 50Hz/60Hz, max. 35VA.
• Dimensions and weight: 215W × 80H × 295Dmm, 2.4kg.
• When using the HIOKI internal resistance tester 3562A, the following matters need to be noted:
• 1. Correct connection: Ensure that the connection between the test wire and the tested battery or device is correct and firm to avoid the influence of poor contact on the measurement result.
• 2. Measurement range: Understand the measurement range of the instrument and do not measure beyond the specified range to avoid damaging the instrument or obtaining inaccurate results.
• 3. Environmental conditions: It should be operated in a suitable temperature and humidity environment to avoid the influence of extreme environments on the performance and measurement of the instrument.
• 4. Preheating: Before conducting formal measurement, carry out appropriate preheating as required to ensure the stable operation of the instrument.
• 5. Avoid interference: Try to avoid the existence of strong electromagnetic interference sources around to avoid interfering with the measurement signal.
• 6. Safe operation: Comply with relevant electrical safety regulations to prevent dangerous situations such as electric shock from occurring.
• 7. Regular calibration: Calibrate at regular time intervals to ensure the accuracy of the measurement.
• 8. Handle with care: In the process of handling and using, operate carefully to avoid damage to the instrument caused by collision and violent vibration.
• 9. Cleaning and maintenance: Regularly clean the instrument to maintain its good working condition.
• 10. Operating specifications: Operate strictly in accordance with the operating instructions of the instrument and do not change the settings or perform improper operations at will.
